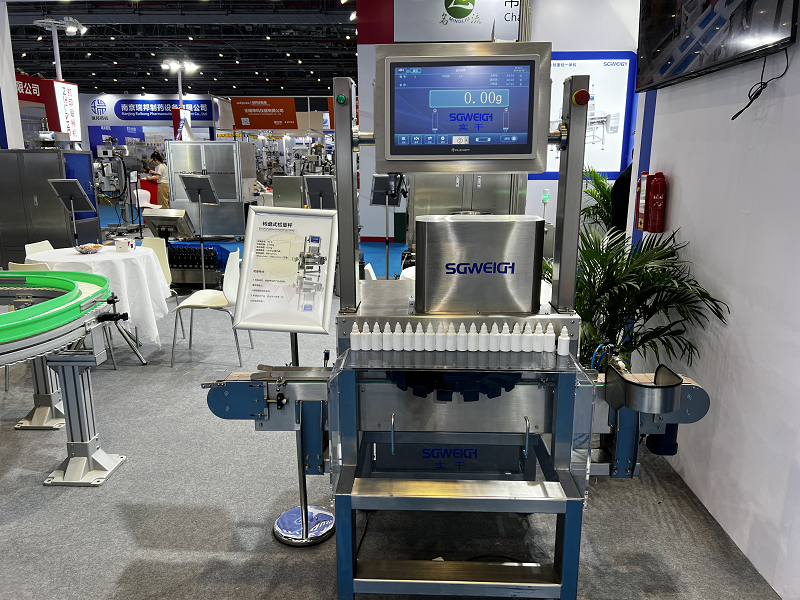

SG-Z Customized Rotary Checkweigher for Bottles


Product Introduction

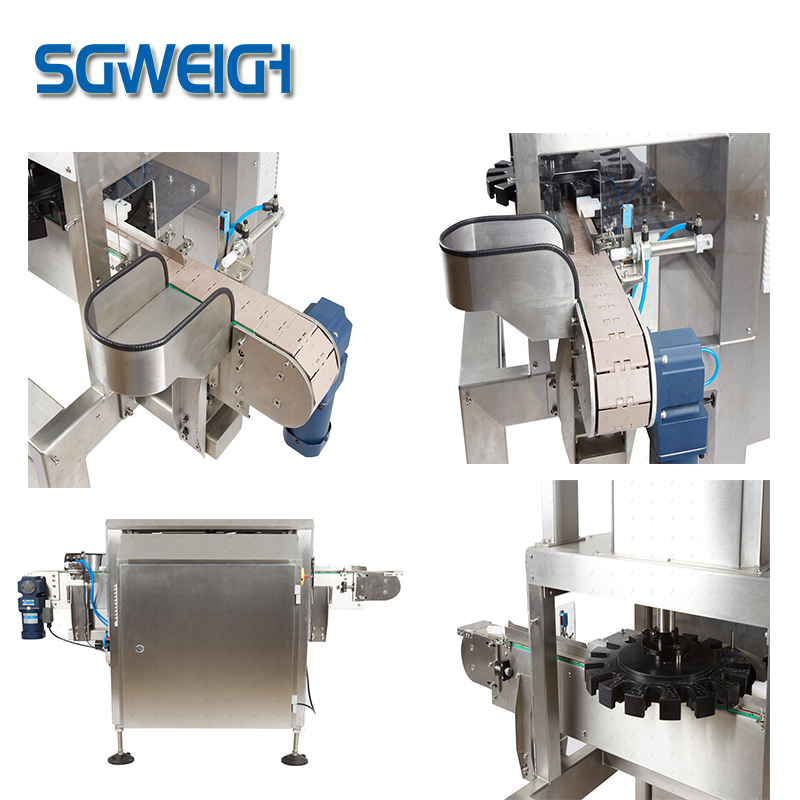

The SG-Z Customized Rotary Checkweigher for Bottles is mainly composed of front-end chain plate feeding,clamping turntable,weighing module,discharging chain plate and rejection.

Front-end chain plate feeding:

The front-end feeding chain plate transports the tested products to the turntable one by one through photoelectric induction.

Clamping turntable:

The corresponding quantity of products is mainly clamped to the weighing module through the clamping turntable to ensure the accuracy of the quantity.

Weighing module:

Completes the collection of weight signals. When the product under test passes through the weighing module, all the weight data of the entire process will be analyzed and calculated to calculate the weight of the product under test. At the same time, the weighing module will determine whether the weight data obtained is within within the required weight range.

Rejection device:

When the products pass through this section of the conveyor belt, qualified products will continue to be transported backward. If they are not within the required weight range, the machine will start the rejection mechanism to remove products with unqualified weight (overweight/underweight).

Tech Specifications

Type:SG-Z

Weighing scope:2-300g

Restrictions of product:Ф10-100 Н:20-200(mm)

Accuracy:±0.01g (Depends on products)

Division scale:0.01g

Belt Speed:0-50m/min

Highest speed:60pcs/min,120pcs/min,180pcs/min(Optional)

Chain plate width:100mm

Weight of machine:about 260Kg

Powder supply ：AC220V 50HZ

Power:about 400W

Main material:SUS304

Note: The properties and usage environment of the tested products are different, and the detection speed and accuracy are also different. The actual test is used as the standard.

Main Features

◎Large screen display,clear viewing and convenient operation.

◎Default Chinese and English operation interface.

◎Photoelectric positioning,the turntable accurately delivers the product to the weighing sensor.

◎The chain conveyor is strong and durable.

◎Three-level operation authority management,support special password setting.

◎100 product formula preset storage.

◎Automatic elimination of unqualified sound products.

◎Multiple channels pass products to improve production efficiency (the number of channels can be customized)

FAQ

Q1. Are you a manufacturer or a trader?

A: Shanghai Shigan Industrial Co., Ltd. is a manufacturer located in Shanghai,China. We have our own product design team.

Q2. How many types of checkweighers do you have?

A：Our company has a variety of models of checkweighers, suitable for most products and can be applied to almost all industries. Our company's checkweighers can be customized according to demand.We have standard checkweighers, bottle checkweighers, multi-lane checkweighers,tablet capsule checkweighers, box checkweighers,heavy object checkweighers and so on.

Q3. What factors should be considered when choosing a checkweigher?

What is the product you want to weigh?

How many grams/kg of the product?

What is the size of the product?

What are the speed requirements?

Accuracy requirements?

Based on the above information, our sales will recommend the most suitable checkweigher for you.

Q4. What kind of shipping methods can you provide?

A: Sea, air and international express. We will send photos and videos of the machine to customers before delivery to check the operation of the machine.

Q5. Do you accept customer logos and customizations?

A: We accept all kinds of customization and logos for all products.

Q6. How is the product packaging?Is it easy to be damaged during transportation?

A: No. We use wooden boxes, which are very safe.
