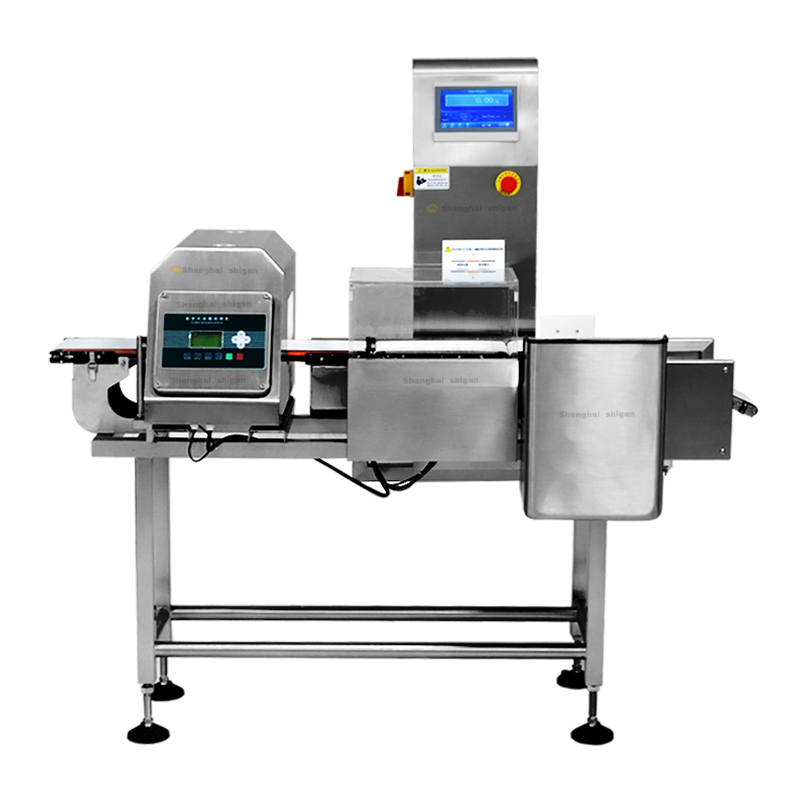

SG-JS150 Conveyor Metal Detector / Checkweigher Combination Systems
Product Introduction
The metal detector and automatic checkweigher are a combination system.SG-JS150 Metal Detector / Checkweigher Combination Systems can exclude products with metal contaminants and products that do not meet the weight requirements. It is an effective solution for metal foreign body detection and online weighing.
Tech Specifications
Model: SG-JS150
Measuring method: electromagnetic induction / digital load cell
Size: 330×150mm
Accuracy: FE0.8-1.5mm,SUS1.2-2.5mm
Selection accuracy: ±0.1g
Weighing range: 5 grams – 900 grams
Passing height: 100-200m
Pass width: 280mm
Packaging length: ≤300mm
Display graduation value: 0.1g 0.2g 0.5g 1g
Number of sorting segments: 3 segments
Sorting ability: 60 times/min
Conveyor belt speed: 10-45 m/min
Ground height: 735mm—800mm
Working temperature: 0-40℃
Weight: about 160kg
Dimensions: 1900mm×700mm×1120mm (L×W×H)
Main Features
1.It has an ingenious structure, takes up less space, is easy to connect to the production line, has high detection sensitivity and is easy to operate. It can save production line space to the maximum extent and achieve more quality control.
2.Advanced technology, applying the latest multi-frequency detection technology, automatic material effect elimination technology, automatic balancing technology, and adaptive adjustment technology, bringing the equipment the simplest operation, the best environmental suitability and stability in the industry.
3.All stainless steel shock-absorbing structure design and manufacture, to ensure long-term stability and service life.
4.Can record detection parameters suitable for 100 different products, avoiding detection errors due to manual differences and avoiding downtime for product replacement.
5.The low-power design and fully sealed design ensure the protection effect with the body structure, reaching the IP65 protection level and a service life of more than 15 years.
