Small and Medium Sized Bottle High Speed Rotary Checkweigher
■ Product Introduction

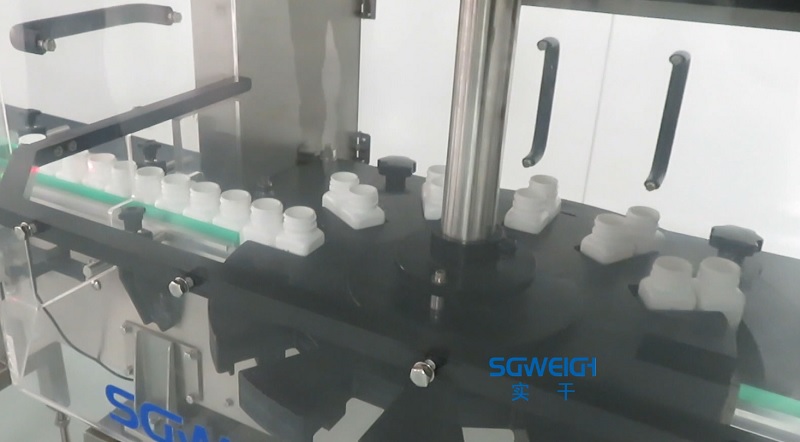

Bottle High-Speed Rotary Checkweigher is specialized automated equipment designed to precisely weigh individual bottles at very high speeds on a production line, using a rotary (carousel) mechanism to minimize footprint and maximize efficiency.
■ Tech Specifications
Model: SG-Z2 (dual channel)
Weighing range: 5-300g
Minimum scale: 0.01g
Sorting accuracy: ±0.02 grams (depending on the product)
Sorting speed: maximum 50 pieces/minute (single channel)
Conveying speed:0-50m/min
Operation mode: touch operation
Conveying direction: Facing the touch screen from left to right
Rejection method: air blowing removal/push plate removal
Belt height from the ground: 750±50mm (can be customized according to customer requirements)
Machine structure: stainless steel (SUS304)
Power supply: 220V 50-60HZ
Power: about 1500W
■ Main Features
1. Large screen display, clear viewing, easy operation.
2. Default Chinese and English operation interface.
3. Photoelectric positioning, turntable accurately delivers products to the weighing sensor.
4. Chain conveyor is strong and durable.
5. Three-level operation authority management, support for self-set passwords.
6. 100 product formulas are preset and stored.
7. Unqualified products are automatically rejected.
8. Multi-channel products pass through to improve production efficiency (customizable number of channels).
