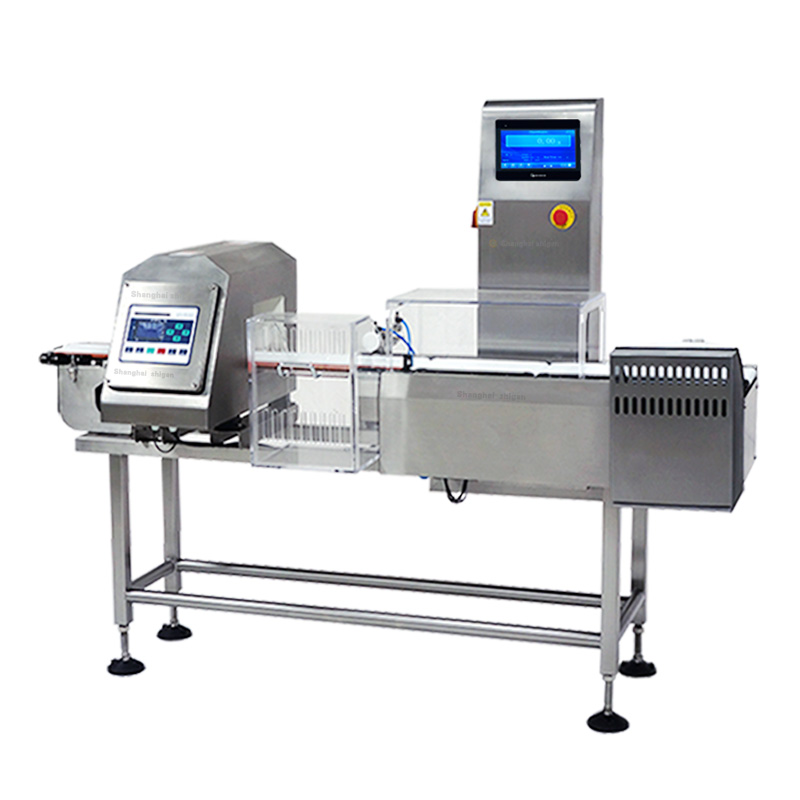

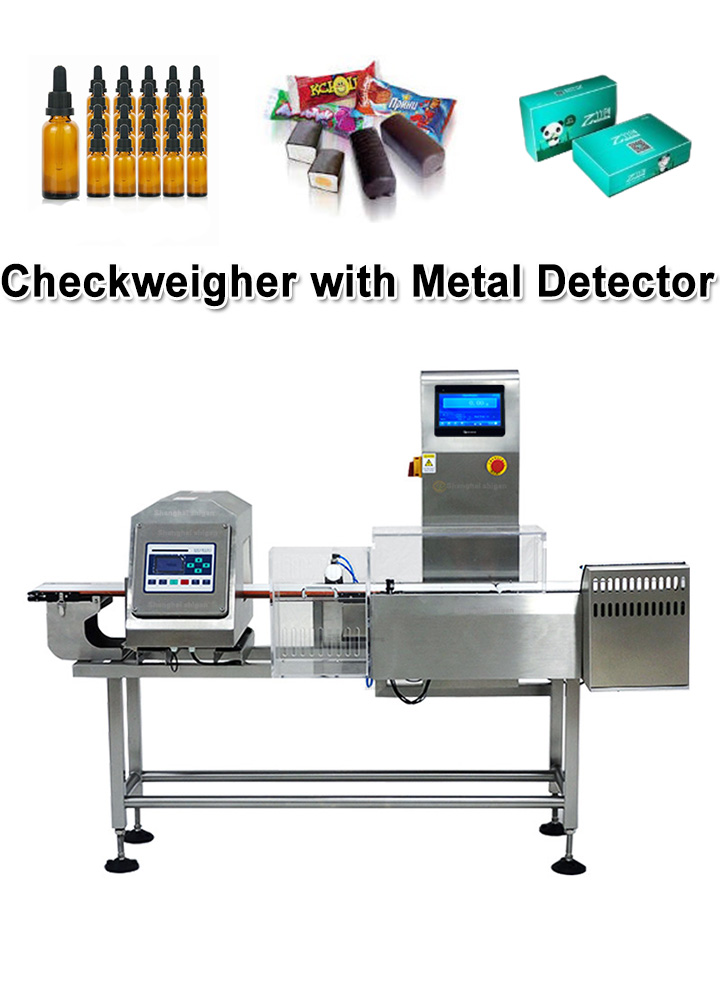

SG-JS150 Online Conveyor Metal Detector and Check Weigher Combo Machine
Product Introduction
Metal Detector and Check Weigher Combo Machine is an online testing equipment specially designed for automatic packaging lines. It can not only realize precise control of product weight but also detect metal foreign objects at the same time, and automatically remove products with unqualified weight and foreign objects from the production line. It saves space and is the most effective solution for end-of-line inspection and quality control.It is an online testing equipment specially designed for automatic packaging lines. It can not only realize precise control of product weight but also detect metal foreign objects at the same time, and automatically remove products with unqualified weight and foreign objects from the production line. It saves space and is the most effective solution for end-of-line inspection and quality control.
Tech Specifications
Model: SG-JS150
Detection hole width: 150mm
Detection hole height: 100-200mm
Detection sensitivity:
H-100mm: Fe≥Φ0.8mm,SUS≥Φ1.2mm
H-120mm: Fe≥Φ0.8mm,SUS≥Φ1.8mm
H-150mm: Fe≥Φ1.2mm,SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective detection hole width: 150mm
Effective detection hole height: 100-200mm
Weighing range: 5-500g
Weighing accuracy: ±0.1g(Depends on products)
Conveyor belt height: 750mm (±50mm)
Conveying capacity: 10Kg/time
Delivery direction: from left to right
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED LCD flat button input
Machine weight: 240kg
Power requirements: AC220V 50HZ
Power: 300W
Main Features
1.It has an ingenious structure, takes up less space, is easy to connect to the production line, has high detection sensitivity and is easy to operate. It can save production line space to the maximum extent and achieve more quality control.
2.Advanced technology, applying the latest multi-frequency detection technology, automatic material effect elimination technology, automatic balancing technology, and adaptive adjustment technology, bringing the equipment the simplest operation, the best environmental suitability and stability in the industry.
3.All stainless steel shock-absorbing structure design and manufacture, to ensure long-term stability and service life.
4.Can record detection parameters suitable for 100 different products, avoiding detection errors due to manual differences and avoiding downtime for product replacement.
5.The low-power design and fully sealed design ensure the protection effect with the body structure, reaching the IP65 protection level and a service life of more than 15 years.
