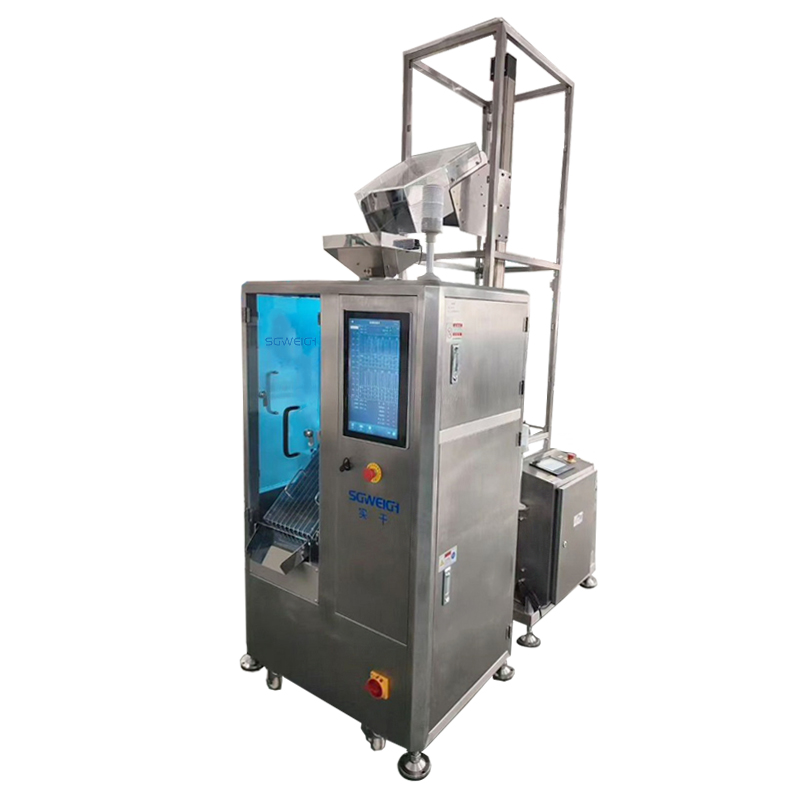

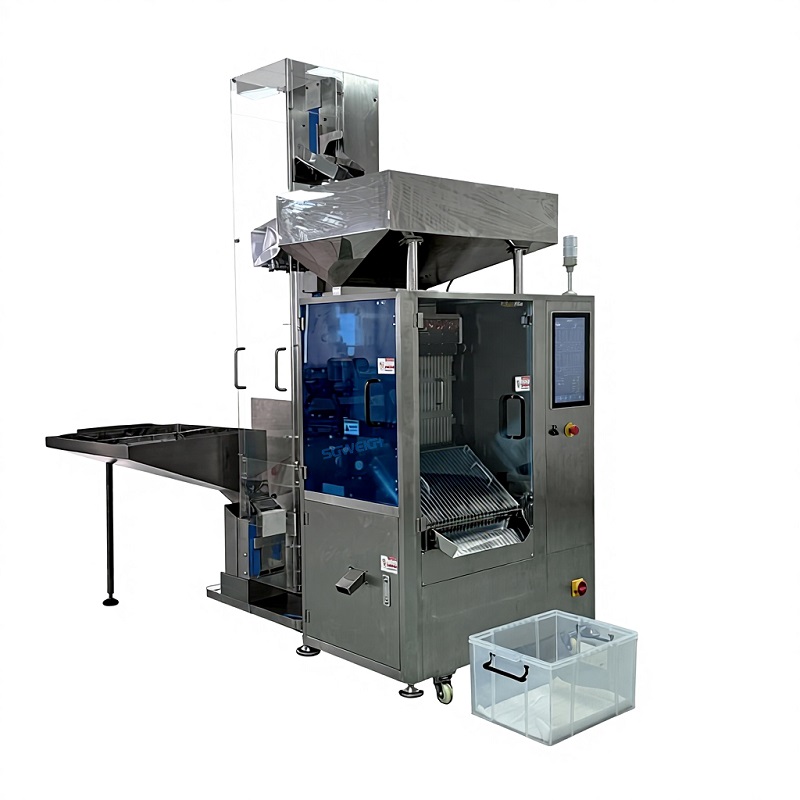

High-Speed 10 Lanes Tablet Capsule Checkweigher with 1mg Accuracy
■ Product Overview
The 100% Capsule Checkweigher is a high-precision pharmaceutical weighing system designed for full-inspection applications, ensuring that every capsule passing through the production line is individually weighed with exceptional accuracy. The system delivers micro-gram level resolution, making it ideal for detecting underweight, overweight, empty, or partially filled capsules.
This Full-Inspection Checkweighing Solution features a multi-lane high-speed conveyor structure that can process up to thousands of capsules per minute while maintaining stable and repeatable measurement performance. Intelligent algorithms automatically compensate for vibration, airflow, and capsule orientation, guaranteeing reliable results even under continuous high-speed operation.
Viedo: Capsule Checkweigher
If you are interested in our products,please contact me!
WhatsApp:+86 18302121916
E-mail:qin@checkweigher-sg.com
■ Tech Specifications
Type:SG-JN10/SG-JN20/SG-JN3O
Weighing scope:5-2000mg
Display scale:0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability:100000 PCS/HR/200000 PCS/HR/300000 PCS/HR
Number of columns:10 Columns/20 Columns/30 Columns
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Humidity:30-70%(but no condensation)
Shell material:SUS304
You can select the best suitable model depending on the production volume.
■ Main Features
◎ Large screen display for clear viewing and easy operation.
◎ Default Chinese/English interface.
◎ Applicable to regular capsules and tablets.
◎ Displays actual data for each channel.
◎ Three-level access control, supports user-defined passwords.
◎ 100 preset product formulas stored.
◎ All channels can be cleaned without disassembly.
◎ Multi-channel product processing improves production efficiency (channel number customizable).
◎ Capsules placed in the hopper are divided into multiple channels by the hopper and conveyed, weighed, and sorted at high speed.
◎ Improves the reliability and environmental flexibility of capsule handling.
■ Application
■ Customers
■ Exhibitions
■ Packaging & Delivery
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
