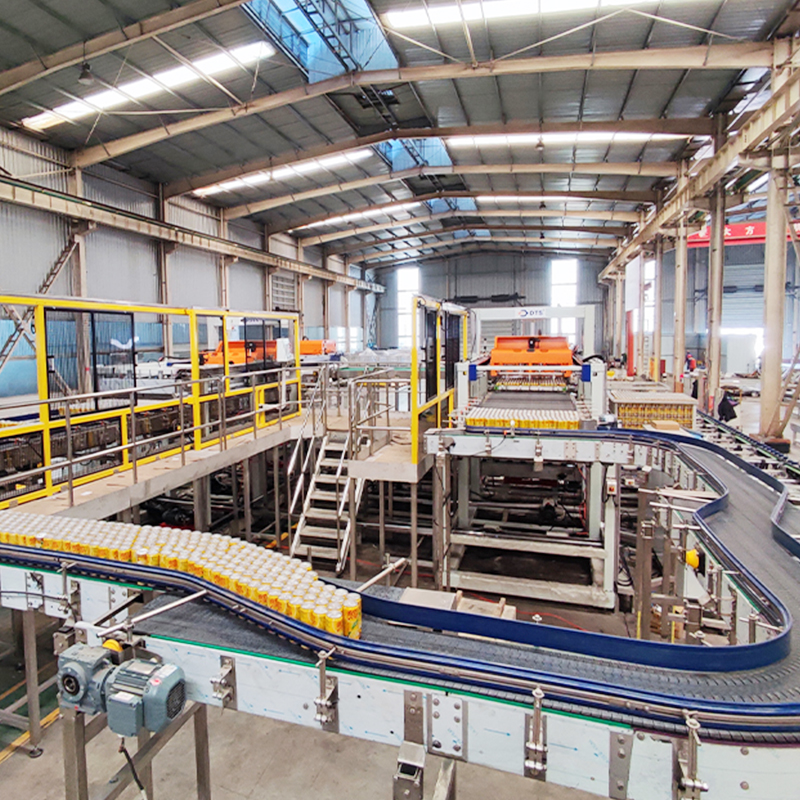

Automatic loading and unloading cage system


The automatic cage loading and unloading system is the guarantee of continuous sterilization of the whole post-sterilization system. It is mainly composed of cage loading system, trolley system, basket conveying system and cage unloading system. The system is mainly used for automatic cage loading and unloading operation of bottled or canned containers such as beverage, dairy products and canned food. The filled products are transported from the conveying line to the cage loading mesh belt line, the basket is automatically positioned and the products and dividers are automatically loaded into the basket layer by layer. Basket through the basket conveyor line and cart automatically send the product into the sterilizer for sterilization; sterilization is completed, the sterilizer to the trolley issued cooking out instructions, the trolley is automatically positioned at the sterilizer and the product dragged out, the basket through the basket conveyor is automatically positioned below the cage unloader, and then through the cage unloader will be pushed to the cage unloading mesh belt line layer by layer, and conveyed by the mesh belt line to the subsequent process; the partitions are automatically The spacers are automatically transported to the cage loading area and the empty baskets are cached on the basket line, ready for re-use.
