Certificates/Standards: | N; |
Monthly Output: | 500 sets per month |
Regional: | No. 34 Zhenlian Road, Fusha Town, Zhongshan City |
Packaging Information: | Wooden Crate Package |
Mode Of Payment: | L/C T/T D/A D/P |
Delivery Lead Time: | 20-45 working days |
Main Sales Markets: | North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa |
Sample Provided: | No |
Sample Policy: | Not provided |
Minimum Quantity: | 1 sets |
Application
It is suitable for weighing soft strip products such as noodles, rice noodles, bean sprout, etc.
Features
1.Special load cell with high precision and high standard.
2.Program recovery function can reduce operation failures and support multi-segment weight calibration.
3.No products auto pause function can improve weighing stability.
4.Linear amplitude can be adjusted independently.
5.Many languages available for global markets.
6.100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation.

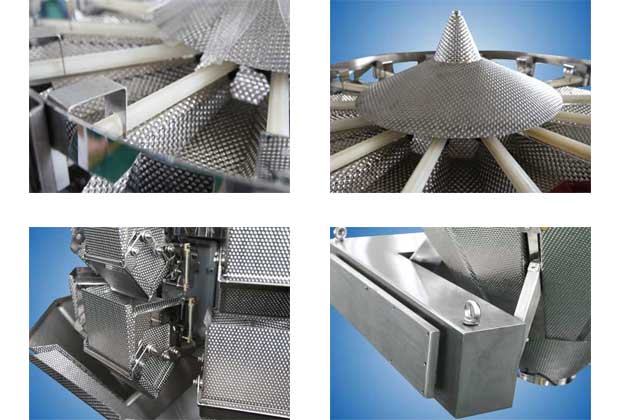

Mechanical character
1.Suitable for products with max 300mm length.
2.IP65 cabinet design, dimple plates for food contact parts.
3.Air pressure system built in cabinet prevents the electronic components from damage due to humidity.
4.60° steep discharge chute makes sure products discharge smoothly.
5.Adjustable Rotary top cone to make feeding averagely to each linear pan.
6.Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.
Model | JW-A10 | JW-A14 |
Identify Code | A10-1-6 | A14-1-6 |
Weighing Range | 10-1000g | 10-1500g |
Accuracy | X(0.5) | X(0.5) |
Max Speed | 30P/M | 60P/M |
Hopper Volume | 2.5L | |
Control Panel | 7”Touch Screen | |
Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
Driving System | Step Motor | |
Power Requirement | 200V/1000W/50/60/Hz/10A | 220V/1500W/ 50/60Hz /12A |
Packing Dimension(mm) | 1620(L)X1100(W)X1420(H) | 1750(L)X1130(W)X1570(H) |
Gross Weight | 380kg | 490kg |
