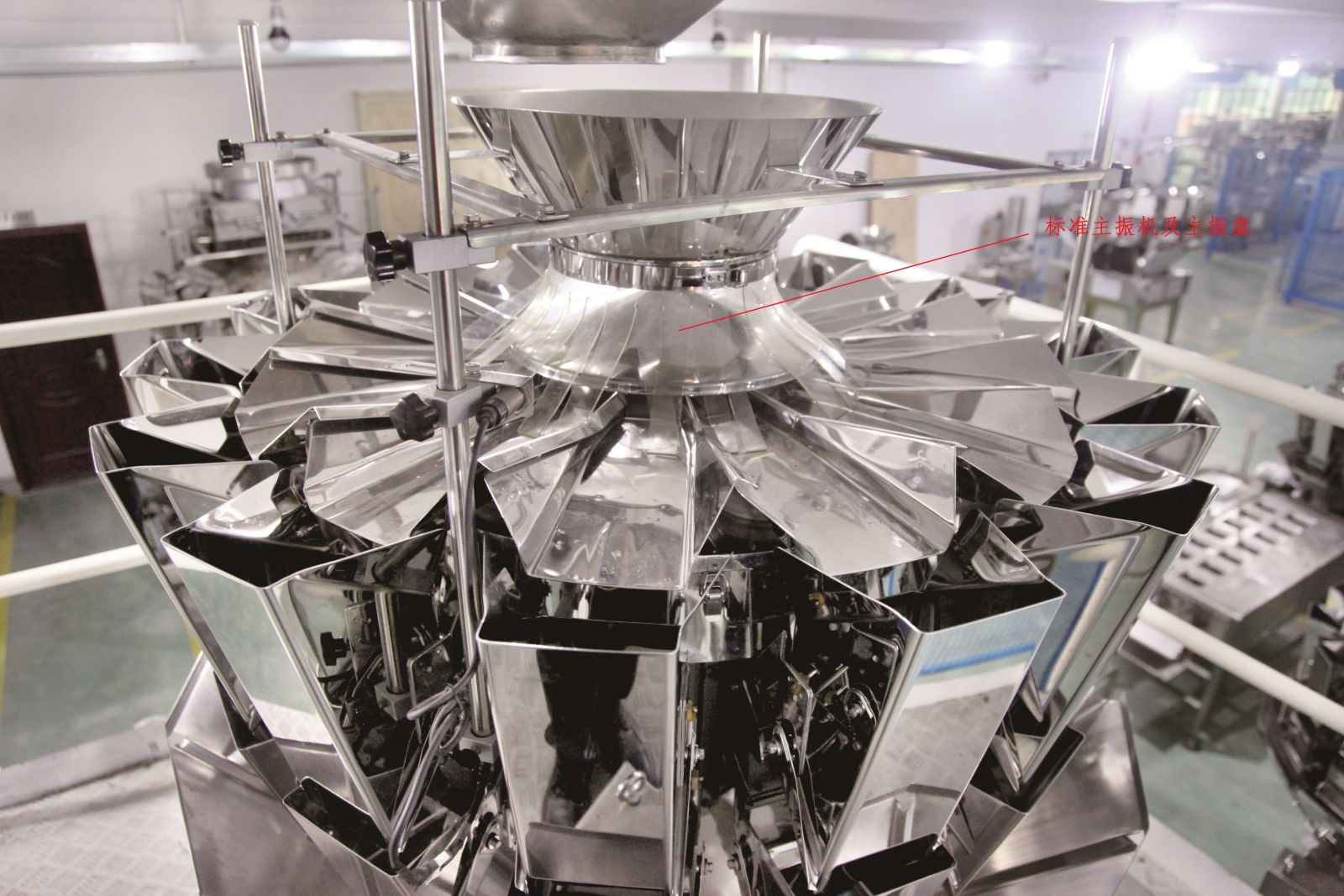

10 Head standard Multihead weigher


 Scope of application

10 Heads Standard Multihead Weigher is suitable for weighing leisure foods such as candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts,raisins etc. and big shell nuts, hardwares, dried fruits, frozen foods, snack foods, meatballs and so on.





＊ Our machine can be customzied on request. Please contact us for more details.Please contact us for more details.

 Features & Mechanical Character :

Features:

1. Special load cell with high precision and high standard.

2. Program recovery function can reduce operation failures and support multi-segment weight calibration

3. No products auto pause function can improve weighing stability and accuracy

4. Linear amplitude can be adjusted independently in the running

5. Many languages available for global markets.

6. 100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation



Mechanical  Character:



1.1.6L/2.5L hopper, suitable for all kinds of common standard materials, can be used widely

2.Mold making process and uniform design standards contribute to better interchangeability for spare parts

3.Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter

4.Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy

5.Can choose patented no-spring hopper ,cost-effective.

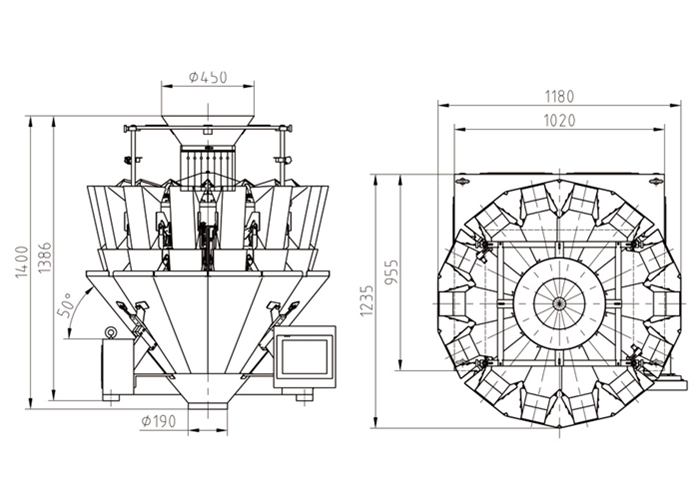

Product Line Diagram:



＊ Our machine can be customzied on request. Please contact us for more details.Please contact us for more details.

 Technical Specification :









Model




JW-A10




JW-A12




JW-A14




JW-AM10




JW-AM14




JW-A10




JW-A14







Identify Code




A10-1-1




A12-1-1




A14-1-1




AM10-1-1




AM14-1-1




A10-1-3




A14-1-3







Weighing Range




10-1000g




10-1500g




10-1500g




100-3000g




100-3000g




10-1000g




10-1500g







Accuracy




X(0.5)




X(0.5)




X(0.5)




X(1)




X(1)




X(0.5)




X(0.5)







Max Speed




65P/M




100P/M




120P/M




50P/M




80P/M




60P/M




100P/M







Hopper Volume




1.6/2.5L




5L




1.6L(No-spring)







Control Panel




7''Touch Screen







Options




Dimple Plate/Timing Hopper/Printer/Reject Device







Driving System




Step Motor







Power Requirement




220V/1000W/50/60Hz/10A




220V/1200W/50/60Hz/10A




220V/1500W/50/60Hz/10A




220V/1500W/50/60HZ/10A




220V/1500W/ 50/60HZ/12A




220V/1000W/50/60Hz/10A




220V/1500W/50/60Hz/12A







Packing Dimension(mm)




1620(L)x1100(W)x1110(H)




1700(L)x1100(W)x1130(H)




1700(L)x1100(W)x1265(H)




1950(L)X1280(W)X1690(H)




2195(L)X1380(W)X1810(H)




1620(L)x1100(W)x1110(H)




1700(L)x1100(W)x1265(H)







Gross Weight




380kg




430kg




490kg




600kg




750kg




380kg




490kg
