Application:

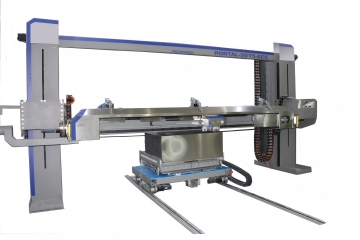

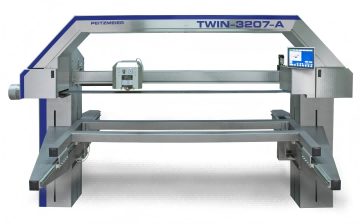

The product is suitable for automatic surface polishing, weld grinding, corner rounding, etc. of
stainless steel enclosure of food and pharma equipment!
Key Features:
The three-axis servo manipulator is used for automatic position adjustment of special-shaped sheet metal workpieces and can work in coordination with the automatic grinding tool;
The flexible grinding control system combined with the robot algorithm realizes the interpolation control of each axis, and can realize continuous automatic multi-level grinding of multiple surfaces of shell-shaped workpieces in one clamping;
It can be equipped with a visual measurement system to automatically measure the dimensions of the workpiece and automatically generate the grinding program.
Maimeters:
Number of sanding belts: 2, 6360mm*120mm, one for grinding and one for polishing
Sanding belt main motor: variable frequency AC motor, power 4KW
width of workbench grinding: 1680mm×1000mm
grinding height: 1200mm
Servo universal support device load capacity: 25Kg
