ZJR | Laboratory Emulsifying Mixer - YK Machinery
Patented product
Patented NO. ZL 2016 2 0741990.9
Key benefits:
Model # | Design Volume (L) | Max. Useful Volume (L) | Min. Useful Volume (L) | Dimensions (L*W*H)MM |
ZJR-5 | 6 | 4 | 2.5 | 1400*600*1700(2000) |
ZJR-10 | 11 | 8 | 5 | 1500*600*1700(2000) |

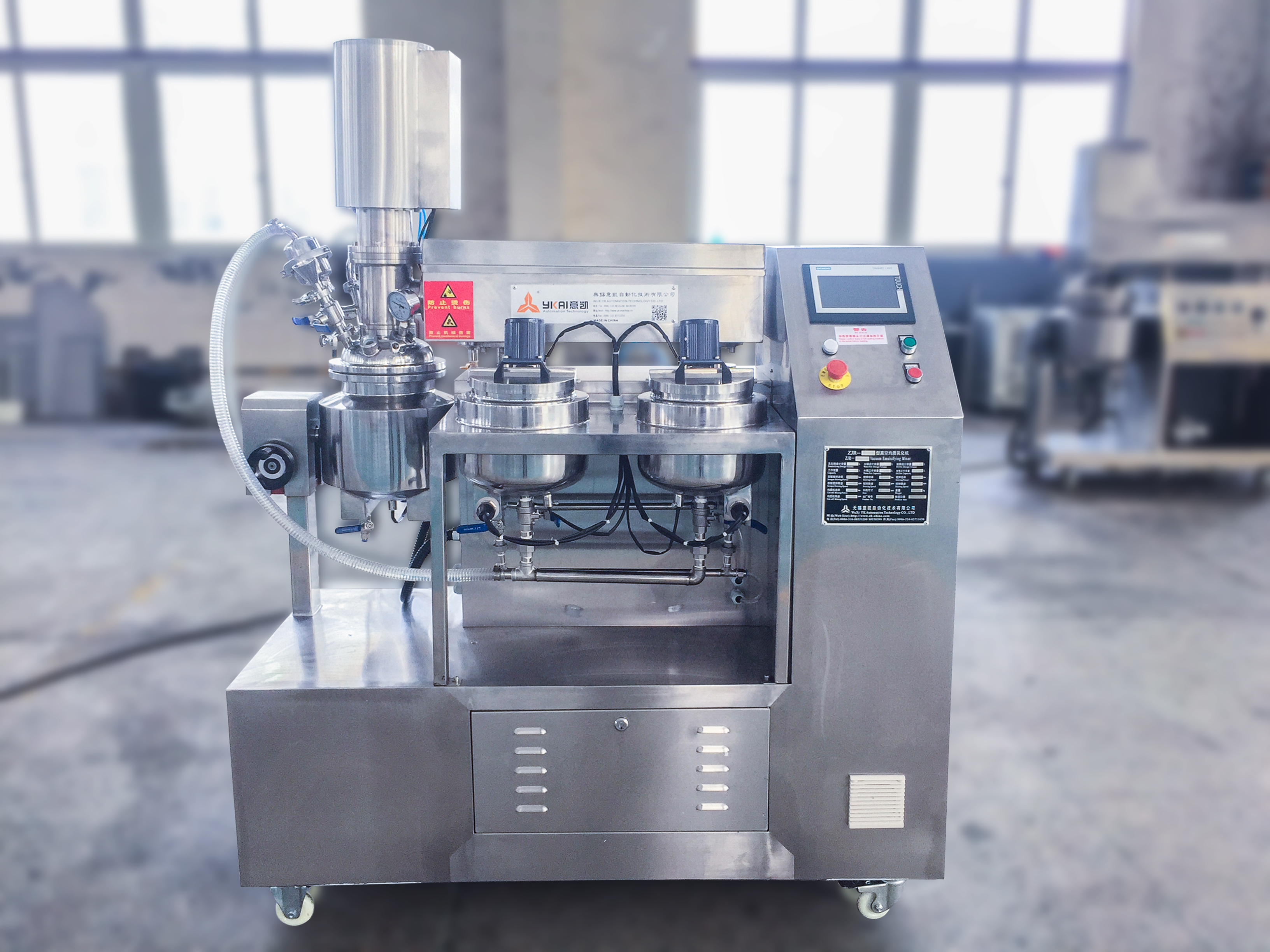

ZJR-5 lab Emulsifying Machine ready for delivery

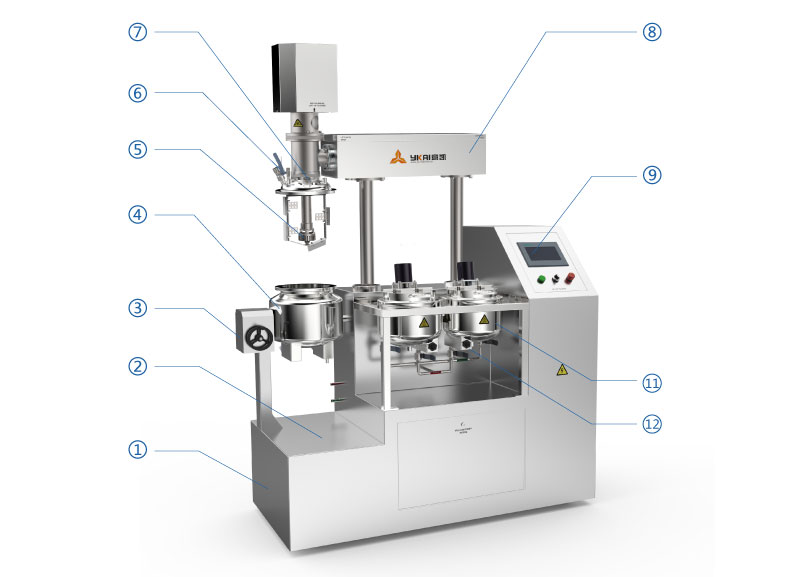

(1) System
Stainless steel cladding, safe and sanitary, easy to clean.
(2) Operation platform
(3) Tilting
The main pot can be flipped down to 120°so that even the high viscosity material can also be easily emptied.
(4) Heating & Thermal insulation
The main pot has independent hating & thermal insulation temperature control system. The thermal insulation layer is arranged outside the heating system to avoide high temperature scalding.
(5) Mixing & Ultra-high speed homogenizing
Cooperated with YK patentmixing system, the ultra-highspeed precise Rotar/Statorsystem can achieve the best homogenizing effect.
(6) Connector
Reserved multiple sets of standard connectors can be used to add solid or liquid additives or access other sensors.
(7) Vacuum
With vacuum system, the pot can be maintained at a vacuum of less than -0.095MPa.
(8) Lifting beam
It can lift the overall mixing system to the outside of the pot, which is easy to clean and observe.
(9) Intelligent operating system
The simple and easy-to-learn innovative emulsifying control system is designed for lab environment. All the parameters can be adjusted easily. And even the hands are stained materials, it’s still easy to control.
(10) Lighting
Bran-new LED light source can both save energy and provide 150 lumens of illumination and 50,000 hours working life.
(11) Pretreament pot
The two pretreatment pots are both equipped with independent heating, temperature control and dispersing system. Pretreament materials can be directly sucked into main pot via negative pressure of main pot.
(12) Heating system
Exclusive heating sysytem for every pot.
