Vacuum lifter for metal sheet /Capacity 500kg vacuum lifter/steel sheet suction lifter/materials handling vacuum lifter

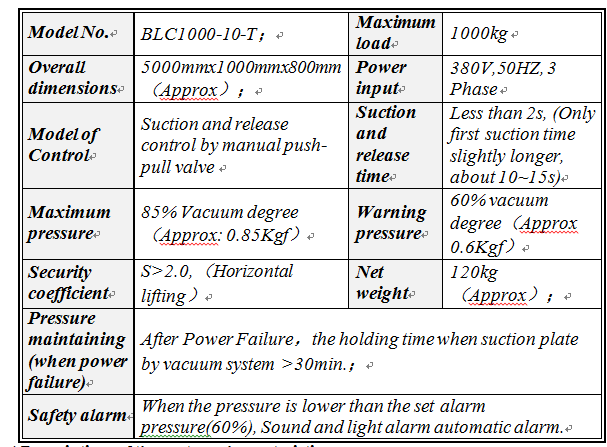

Specification.
- For transport max.loads of 500-2000Kg
- Voltage:380v, 3phase, 50hz,
-Only horizontal handling
- The lifter below the hook, Need crane for hang the lifter, the hoist for up and down lifting.
-for transport goods with a large surface area of up to 6m*2mm
-without damages
-one operator
-Acoustic Warning
-Intergrated safety tank
-Imported Pump&Valve
-Efficient,safe,quick,easy
-Safety Tank&pressure switch waring
-Adjustable suction pads along the beam, can be turned off individually
The device includes the following main components:
1, Vacuum pump:
Oil free air cooling type rotary vane vacuum pump, connected to 380V, Three-phase power can produce vacuum, As a core part of vacuum system, The highest vacuum degree 85%;
2, Vacuum pad:
To suction the work piece surface, Rubber in contact with the workpiece, ensure that won't cause damage to the workpiece surface.
3, Vacuum filter:
To eliminate the dust and particles in the air flow, ensure the lifetime of the vacuum pump;
4, Vacuum gauge:
To show the vacuum level to the operator, Provide security;
5, Vacuum pressure switch:
Pump-film type,When insufficient vacuum pressure, To give electrical signal to alarm system.
6, Manual slide valve:
To switch off the access of vacuum pump and suction pads between the air flow, Safety locks, prevent accidental operation.
7, Vacuum non-return valve:
When the system power failure occurs, automatically shut off the vacuum pump and air channel, Lock the vacuum energy of vacuum tank. Provide enough pressure holding time, ensure the workpiece will not falling in suddenly.
8, Manual Ball Valve:
To manually open or close vacuum pump and suction pads pathway, convenient maintenance.
9, Alarm indicator lamp:
When the suction force of a single set of suction pads is insufficient, The corresponding indicator light alarm.
